0.02 Torr Automatic Refrigerant Filling And Sealing Welding System For Automatic Brazing Machine
Product Introduction with Automatic Brazing Machine:
The automatic refrigerant filling and sealing welding system is a highly integrated automation equipment designed specifically to optimize the refrigerant filling and sealing process. This system integrates advanced evacuation technology, precise refrigerant filling control, efficient flattening and trimming mechanisms, as well as precise argon arc welding sealing technology, realizing the fully automated process from workpiece preparation to finished product output.
Operation Process with Automatic Brazing Machine:
During the operation, the system first automatically conducts a rigorous leak-tightness test on the workpiece to ensure there are no leaks, which serves as the foundation for ensuring the effectiveness of refrigerant filling and product performance. Subsequently, through precise measurement and control systems, an appropriate amount of refrigerant is injected into the interior of the workpiece, ensuring the accuracy and consistency of the filling volume. Upon completion of filling, the system automatically initiates the flattening and trimming processes, performing necessary shaping and edge treatment on the workpiece to prepare it for subsequent welding and sealing.
In the welding stage, the system employs advanced argon arc welding technology, achieving high-quality and consistent welds by precisely controlling parameters such as welding time, current, and gas flow rate. Meanwhile, the welding position can be precisely adjusted according to the specific shape and dimensions of the workpiece, ensuring a tight and secure seal. Additionally, the system is equipped with intelligent detection devices that continuously monitor various parameters and states during the welding process, ensuring the stability and reliability of welding quality.
This system also boasts a high degree of flexibility and adaptability. By adjusting the height and position of the workstation positioning plate, it can easily accommodate production needs for products of different lengths and sizes, significantly enhancing the versatility and production efficiency of the equipment.
Product Parameters with Automatic Brazing Machine:
| Workpiece Dimensions | L1000mm x W500mm x H150mm |
| Injected Medium | R245FA |
| Normal Filling Quantity | 5g - 40g |
| Maximum Filling Quantity | 2000g |
| Equipment Vacuum Level | 0.02 Torr |
| Filling Accuracy | ±0.3g |

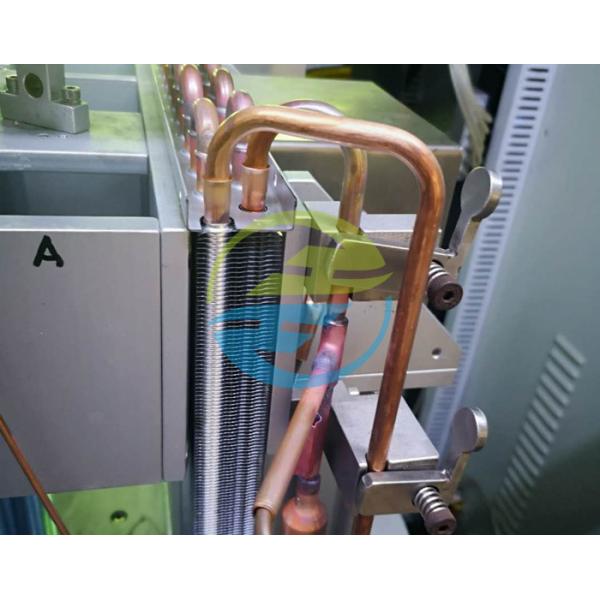

Product Image with Automatic Brazing Machine:
Our advantage service:
We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.
About Us:
Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern enterprise specialized in the research and development, manufacturing, and sales of technology-intensive industrial equipment. The company's leading products include vacuum helium leak detection equipment, automatic brazing machines for gas/liquid filling and recovery systems, lean production lines, and laboratory testing equipment. These products are widely used in industries such as automobiles, refrigeration, power, home appliances, electronics, pharmaceuticals, plumbing, military, and others. Led by Mr. Li Jianhe, an expert with profound knowledge in vacuum and automated testing equipment, the company possesses its own core technology and holds multiple invention and utility model patents. Relying on a high-level talent team, the company has adopted a new production model focused on development and design, assembly and debugging, as well as after-sales service, and provides products that are suitable for customers' specific usage and technical requirements. Since its establishment, the company has introduced various types of specialized equipment to the market, satisfying domestic market demand while also exporting to countries and regions in America, Europe, Asia, and Africa.
Product Tags:
|
|
0.02 Torr Automatic Refrigerant Filling And Sealing Welding System for Automatic Brazing Machine Images
|
